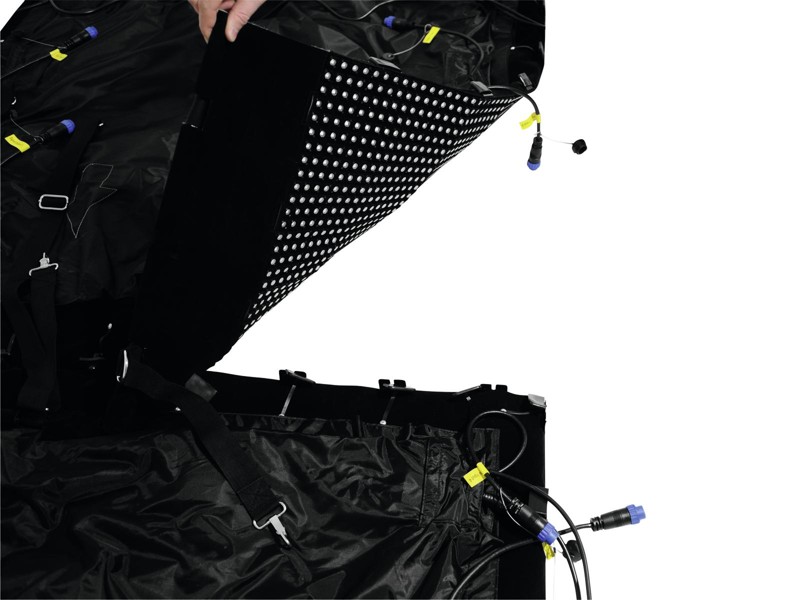

Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics. Improved version with even brighter LEDs and new angled connectors. Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances. Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles. Fast and uncomplicated installation, indoor and outdoor (IP 44). Truss suspension via built-in belts . Water-repellent and flame-resistant. Low weight and small volume for convenient transport. Easy maintenance – LEDs can be replaced without difficulty. Controllable via optional network components and PC software. All-in-one control system T9 (80503300): network interface and software LED Show T9 – ideal system for mobile use with notebooks with 1-gigabit NIC . Control system LED studio: receiver interface (80503310), PCI sending card and software LED Studio (80503130). Recommended media software: MADRIX . Switch-mode power supply for operation between 100 and 240 Volts. Power output for passing on the power supply. Available in different sizes and pixel pitches. Custom sizes available upon request.
Sekce: AV TECHNIKA -> LED obrazovky -> LED stěny
Druh produktu: LED soft displays
Název produktu: Eurolite LSD-20 MKII (H) 2,56 m x (W) 1,28 m
Značka: Eurolite
Specifikace: Power supply: 90 – 260 V AC, 50/60 Hz ~
Power consumption: 78 W/m
Resolution (WxH): 64 x 64 pixels
Pixel pitch: 18.25 mm
Pixel density: 3002/m
Pixel configuration: tricolor RGB LEDs, type SMD 5050
Lifetime: approx. 100000 hours
Display port: DVI/RJ45
Display mode: synchronous to video source
Drive mode: 1/8 scan
Screen resolution: rec. 1024 x 768, max. 1280 x 1024
Brightness: 3680 cd/m (nits)
Viewing angle: 110
Frame rate: 60 Hz
Data refresh rate: 600 Hz
Colors: 16,7 million (R 256, G 256, B 256)
Protection rating: IP 44
Operating temperature: -10 to 45 C
Humidity: 10 to 90 %
Dimensions (WxH): 1170 x 1170 mm
Weight: 9 kg/m2
Kod produktu: 80503260
EAN: 4026397459814
