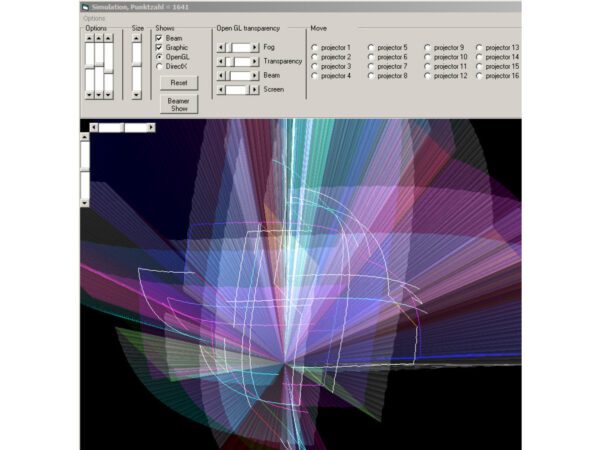

Software features of Laserworld Showeditor:. Internal resolution XY: 32 Bit. Resolution color RGBI: 8 Bit. Number of tracks on timeline: 48 tracks on 16 track pages + 18 effects each. Matrix Mapping: 16 track page mixes to up to 16 ILDA interfaces. Number of output interfaces at control PC: no limitation. Number of interfaces with output at the same time: 16. Output speed max.: ~150.000 points per second. Bitmap Tracing: Yes. AI File Import: Yes, file version 5. ILDA Import / Export: Single frames and whole shows. ILDA Export protection: can be locked to license. SMS output on Laser: Yes (Siemens TSM Module TC35i or TXT file). Running text: Yes. Morphing text: Yes. Fonts: any TTF + 3 extra fonts. Simulation: Yes (either DAC or simulation). Real time output to laser: Yes. Multi Screen support: Yes (window positions are saved). Skin (custom colors for software look): Selectable. Individual scanner settings per output interface: Yes (including pps rate). Individual color correction per output interface: Yes, TTL, Analog, RGB, 3-point. Individual mapping per output interface: Yes, TTL, Analog, RGB, 3-point. Individual geometric correction per output interface: Yes, invert X/Y, distortion, Size, position, etc.. Safety zones / beam attenuation: Yes, per output interface. 2 with soft fading. Individual names per output interface: Yes. Settings can be saved: Yes. Virtual hardware for simulation etc.: Yes. Playlist support: Yes. Auto Monitor Standby: Yes. Video support: Yes, video as basis for timeline shows output via second monitor channel. Free shows: more than 250 Free shows supported. Commercial shows: available online. X/Y scanner output with 12 bit resolution (4096 different positions on each axis). Up to 6 color output with 8 bit resolution (256 different values per color channels): red, green, blue, intensity, user defined 1, user defined 2. DMX512 input and output (non-isolated). 10/100 Mbit Ethernet port. Flexible IP address setting: fixed address, DHCP or AutoIP. Micro-SD card slot for ILDA file playback (ILDA format code 5 RGB). Built-in laser figures for stand alone operation. Stand alone operation via DMX control or auto trigger. Maximum scan speed of up to 150kpps. Up to 16 devices can be used in parallel for multi-projector laser shows.
Sekce: SVĚTELNÁ TECHNIKA -> Lasery -> Příslušenství
Druh produktu: Set with Laserworld Showeditor 2015 and Laserworld

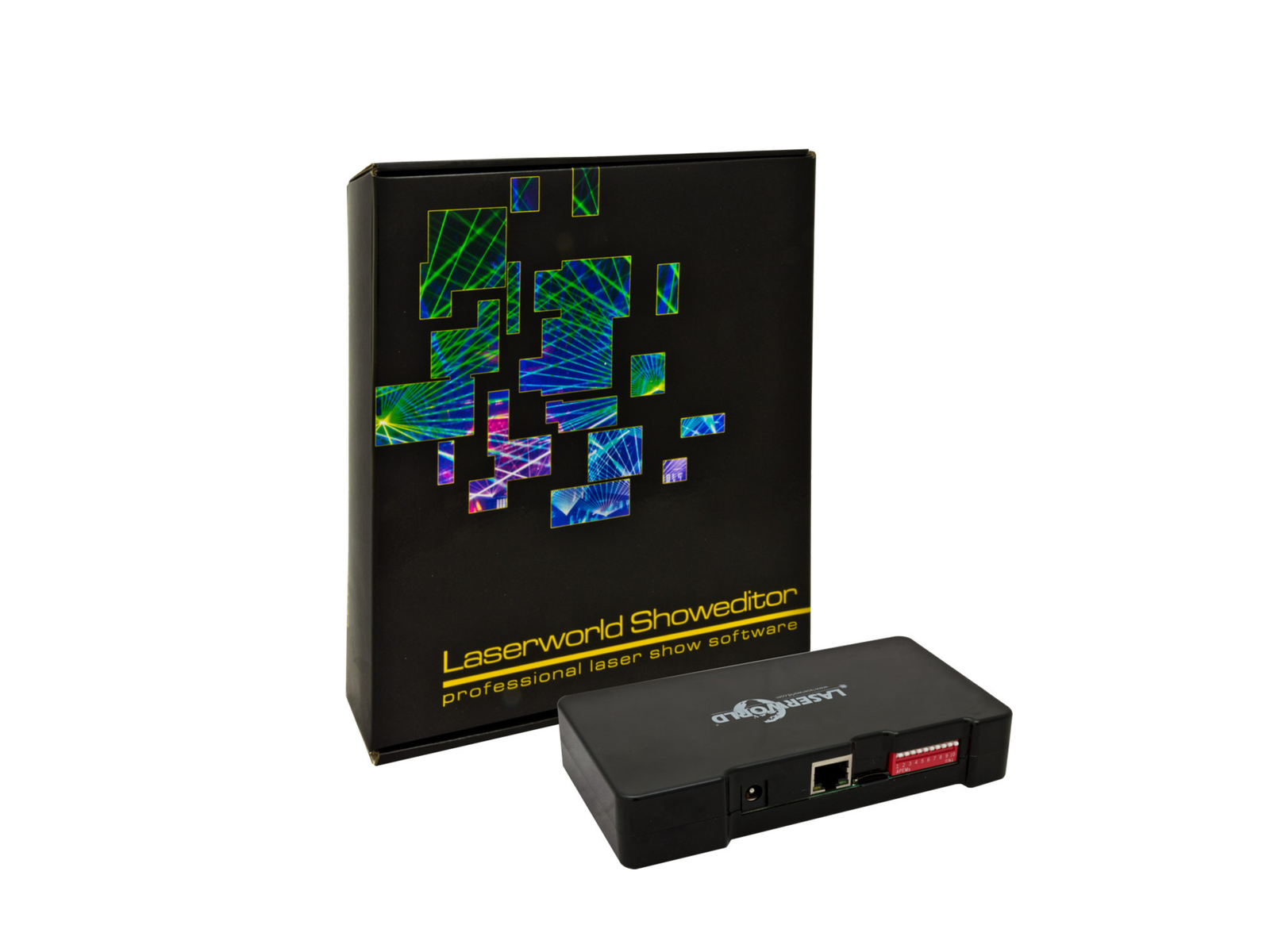

Název produktu: Laserworld Showeditor Set – Lasershow Software ILDA
Značka: Laserworld
Specifikace: Dimensions (L x W x H): 300 x 280 x 180 mm
Weight: 900 g
Kod produktu: 51743200
EAN: 7640144990251
