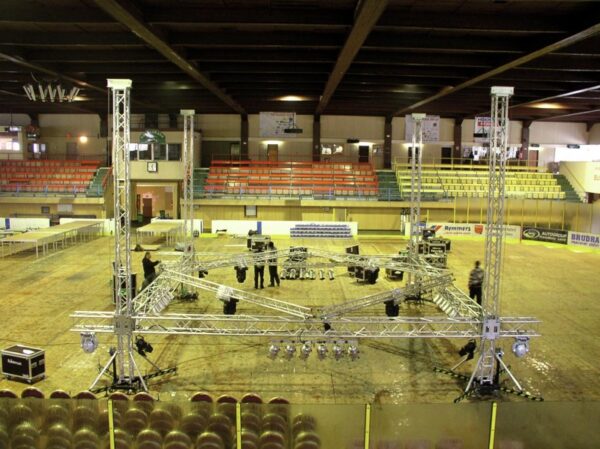

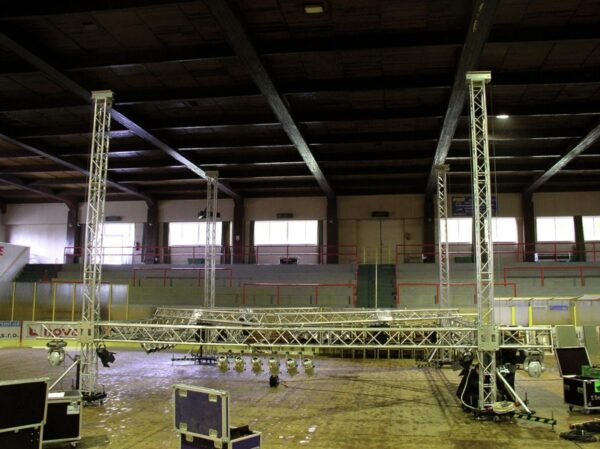

QUADLOCK TQ390 4-point truss systemQUADLOCK TQ390 is a 4-point truss system made of aluminum. The individual elements are connected via four cones, pivots and pins.The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.The four main chords are made of 50 mm aluminum tube with 2 mm wall thickness and offer a good relation between strength and weight. The braces have a diameter of 20 mm with 2 mm wall thickness and provide higher strength and load capacity.With 390 mm outer dimensions, QUADLOCK TQ390 is a stable truss system for higher loads and extended durability. This system is mainly designed for intense use in stage installations, fair installations, event installations but also for permanent installations in discotheques and theatres.Due to its higher outer dimensions and the enforced braces, larger structures for tour stages, large discotheques etc. can be realized.The production of this truss system is TUV-monitored. The load table as calculation base can be downloaded from the Internet before buying the product!Please note: this truss system must never be combined with other systems!
4-point cross beam systemEasy rigging
Low weight

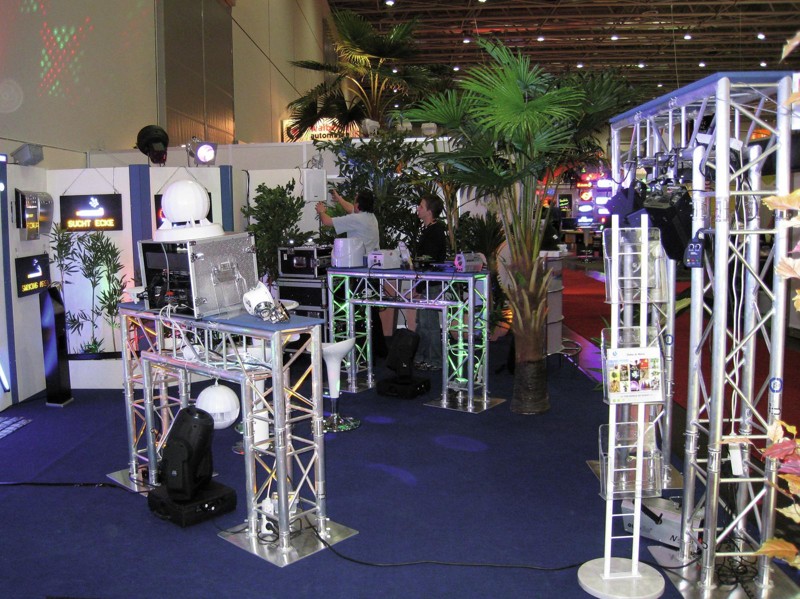

For trade shows, discos, or theater installations
1 x Connection set included
Trusspipe: 50 mm
T?V S?d
Sekce: PÓDIOVÁ TECHNIKA -> Konstrukce -> Hliníkové konstrukce -> 4-bodový systém -> Quadlock TQ390
Druh produktu: 4-point cross beam system

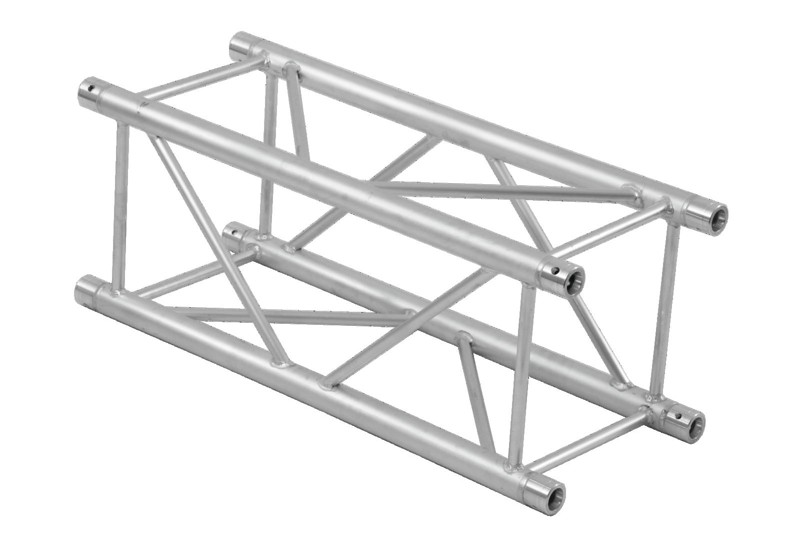

Název produktu: Quadsystem TQ390 5000 rovný díl
Značka: Alutruss
Specifikace: Trusspipe: 50 mm x 2 mm
Color: Alu colored
Trusspipe: 50 x
Welding material: AlMg 5
Welding technique: TIG-welding
Strut diameter x thickness: 20 x 2mm
Length: 5000 mm

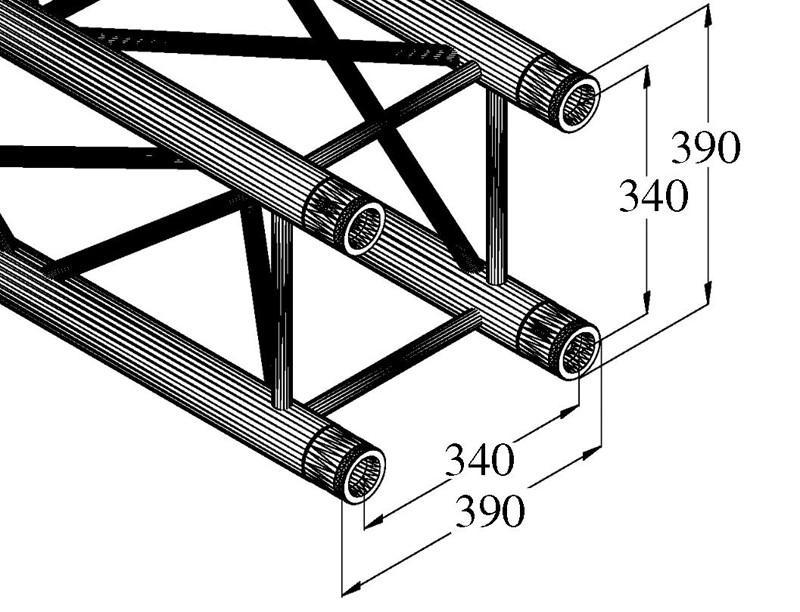

Width: 390 mm
Height: 390 mm
Weight: 25,46 kg
Kod produktu: 60306040
EAN: 4026397187267
